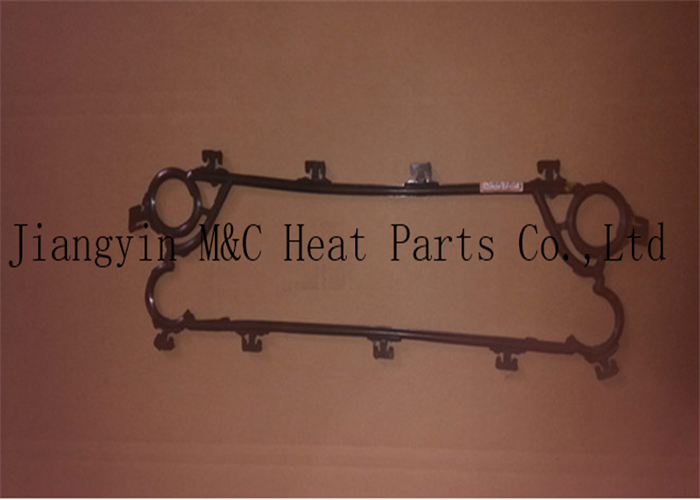

S4A Heat Exchanger Uae Reasonable Plate Mould Design Liquid To Liquid Hert Exchanging

Brand Name : M&C

Model Number : S4A

Certification : ISO SGS FDA

Place of Origin : Jiangsu, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/P, T/T, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 5-8 work days

Packaging Details : Standard Export Carton,Wooden Case,Plywood

Product Name : Heat Exchanger

Apply mechanical : Chemical and mechanical

Structure : Plate Heat Exchanger

Application : Liquid to liquid hert exchanging

Dimension : centre to centre: 381mm*70mm

Transfer Area : 0.04㎡

Contact Now

Heating	Cooking
Cooling	Freezing
Pasteurising	Central HVAC
Water Heaters	Ancillary Cooling
Waste Heat Recovery	Cooling Tower Isolation
Heat Pump Installations	Boiler Sepatation Plates
Lube Oil Coolers( Turbines)	Thermal ( Ice) Storage Systems
Seal Water Coolers ( Vacuum Pumps)	Gearbox Oil Cooling (Wind Turbines)
Heating, Ventilating & Air Condition	Industrial Process Liquid Heating and Cooling
Concentration in the Food and Dairy Industries	Ground Water Isolation Exchangers( Geothermal)
Pharmaceutical-Hygienic Water Heating/Cooling	Brewing-Wort Cooling, Beer/Large/ Cider Condition
Chemical Heating and Cooling, Either in-line or on a Batch Process	Food & Dairy- Specialist in milk pasteuring, raw milkcooling, non viscous food products and CIP wash water heating
Marine-(Titanium Plates) for uses such as main engine cooling, oil cooling, intercoolers and deck wash water heating

S4A Heat Exchanger Uae Reasonable Plate Mould Design Liquid To Liquid Hert Exchanging

Plate Heat Exchanger Construction

A plate heat exchanger is a type of heat exchanger that uses metal plates to transfer heat between two fluids. It is composed of fixed pressure plate, flexible pressure plate, top and bottom guid bars, back post, support foot, heat exchanger plate, gasket, roller, tightening bolt, nut, lock wahser and frame foot.It has a major advantage over a conventional heat exchanger in that the fluids are exposed to a much larger surface area because the fluids are spread out over the plates. It is the most efficient type of heat exchanger with its low cost, flexibility, easy maintenance, and high thermal tranfer. We offer competitive heat exchanger solutions that surpass other OEM in performance, maintenance, and economy. The models we provide can replace the world famous manufacturers.

S4A Heat Exchanger Uae Reasonable Plate Mould Design Liquid To Liquid Hert Exchanging

Material of PHE gasket and plate

M&C Heat Exchanger include Plate Heat Exchanger, Brazed Heat Exchanger, Heat Exchanger Spare Parts,and the material of gasket and plate are as follows:

Gasket Material	Temperature(℃)	Fluid
Viton/FKM	-5 ---------+180	Acid,Alkali Fluid
HNBR	-15--------+160	High-temperature mineral water/oil, High-temprature water
NBR	-15--------+110	Water,Sea water, Mineral smoke water
EPDM	-25-------- +170	Hot water, steam,Acid, Alkali

Plate Material	Fluid
Hastelloy (C276,D205,B2G)	Concentrated sulfuric acid, Hydrochloric,Phosphoric acid
Titanium	Sea water,Salt water, Salt compounds
Nickel	High-emperature, high-concentration caustic soda
20 Cr,18Ni6Mo(254SMO)	Dilute sulfuric,Aqueous salt solution, Inorganic water solution
Stainless Steel (AISI304,AISI316)	Water,Steam,Lubricants
