Sigma 38 Heat Exchanger Rubber Gasket EPDM 975mm*250mm

  • 1
  • 2

Brand Name : MC

Model Number : Sigma38

Place of Origin : Jiangyin

MOQ : 20pcs

Price : USD2-80-PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000PCS per month

Packaging Details : standard export carton, plywood case

Product Name : Sigma 38 Heat exchanger gaskets EPDM 975mm*250mm

Gaskets Materials : NBR/EPDM/HNBR/HEPDM/Viton/FKM/HTNBR

Structure : Plate heat exchanger

Feature : high temperature resistance

Shape : Flat gasket

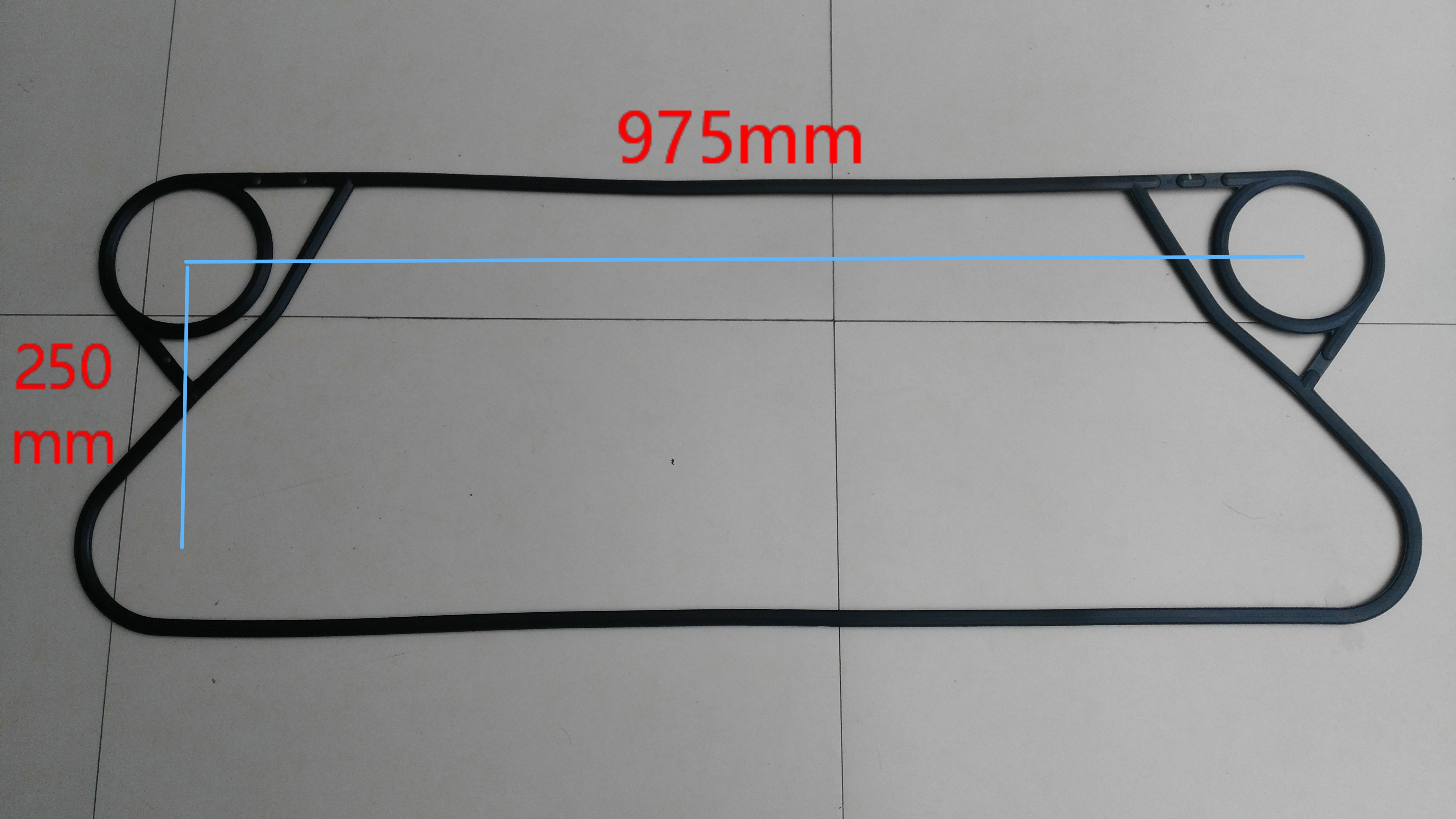

Dimension : 975mm*250mm

Advantage : Easy inspection and disassembly

Strength : Avoid cross contamination

Contact Now

Sigma 38 Heat Exchanger Rubber Gasket

Sigma38 Plate Heat Exchanger Description

The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.

Sigma38 Parameters

Gasket Material Temperature Range ( ℃) Hardness Available Medium
NBR -20 to 110 -75+/-3 Water, Oil, Acid etc
EPDM -30 to 150 80+/-5 Steam, Ammonia, Acid etc
NBR-HT -30 to 160 85+/-5 Mineral Oil, Thermal Oil
EPDM-HT -30 to 180 85+/-5 High temperature water

TFEP

-20 to 180 80+/-5 Acid,Glycol,Chloride
Viton/FKM -55 to 220 80+/-5 Acid,Glycol,Chloride

Production Introduction

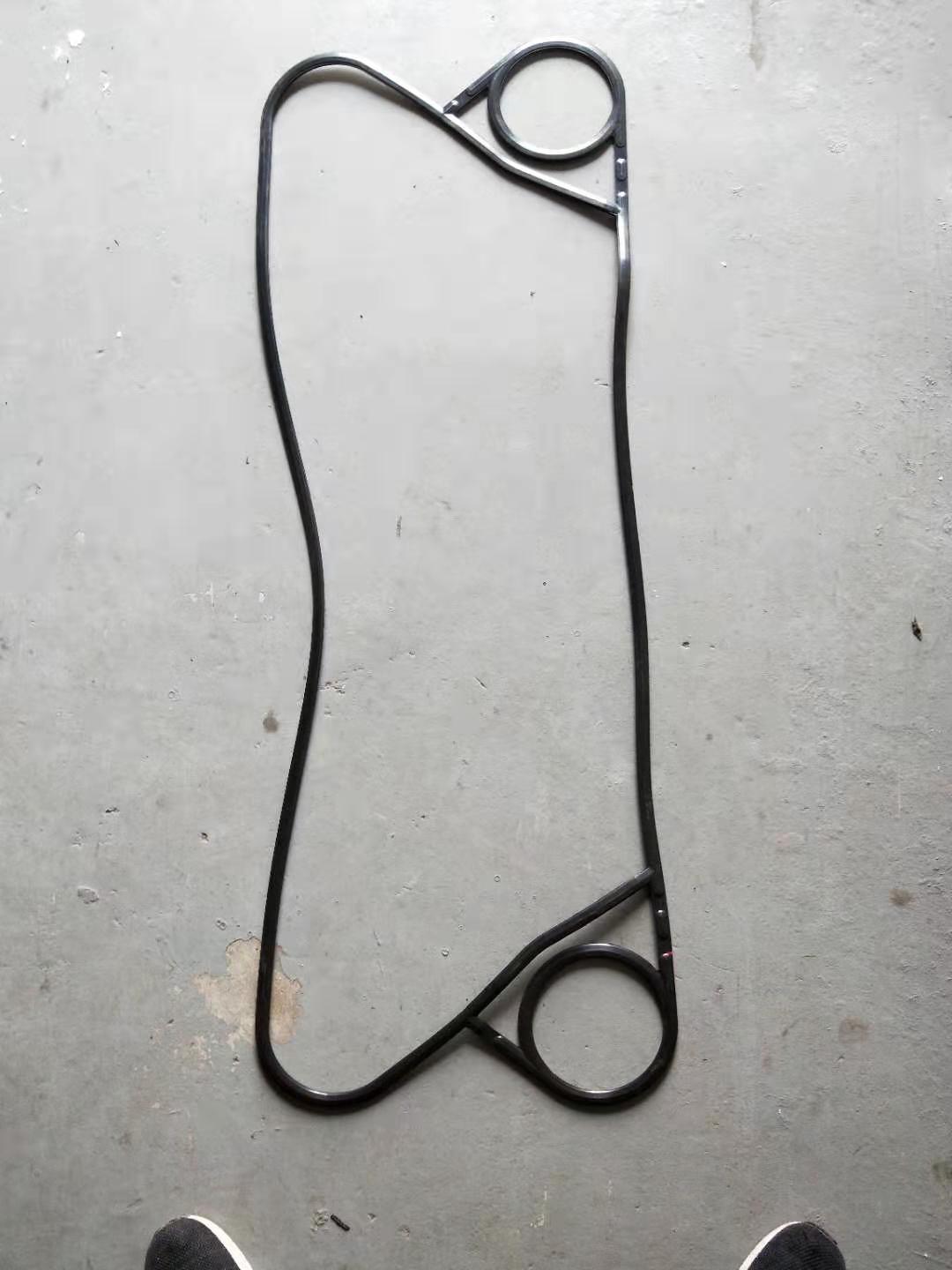

Sigma 38 Heat Exchanger Rubber Gasket EPDM 975mm*250mm

Basic information

Plate heat exchanger gasket is one of the important parts of plate heat exchanger,which can produce plastic deformation and have certain strength.

M&C’s gaskets are customized to fit the customer’s working conditions and are manufactured by a professional factory in a specified size.

The contact width between the high pressure gasket and the sealing surface is very narrow ( line contact).

Sealing Principle

The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole. When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media. Sealing gasket according to different media and operation temperature to choose different types of gaskets.

Brand Name: M&C

Material: NBR,EPDM,HNBR,VITON,FKM

Advantage: Produce plastic deformation and have certain strength

Sigma 38 Heat Exchanger Rubber Gasket EPDM 975mm*250mm

Gasket Feature

  • Simple style and good sealing
  • Widely used and adaptable
  • Resistant to corrosion and high temperature
  • Easy to disassemble and maintain

Application Areas/Occasions

HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration

Why Choose Us?

  • We always think from the perspective of customers, solve problems and bring higher value to customers.
  • More than 8 years of professional experience and expert team.
  • Professional production RD team to improve heat exchanger efficiency and reduce operating costs.
  • The technical scheme of guaranteed commitment.
  • Whole process service from pre-sale to after-sale.
  • Help customers reduce risks and save costs to manimize customer benefit

Package:standard export carton, plywood case
