S21A Steam Sondex Plate 0.21㎡ Heat Exchanger Gasket High Pressure

Brand Name : M&C

Model Number : S21A

Certification : ISO SGS FDA

Place of Origin : Jiangsu, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/P, T/T, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 5-8 work days

Packaging Details : Standard Export Carton,Wooden Case,Plywood

Product Name : Plate Heat Exchanger Parts

Material : Rubber,NBR,EPDM

Structure : Plate Heat Exchanger

Application : Liquid to liquid heat exchanging

Dimension : centre to centre: 719mm*225mm

Transfer Area : 0.21㎡

Contact Now

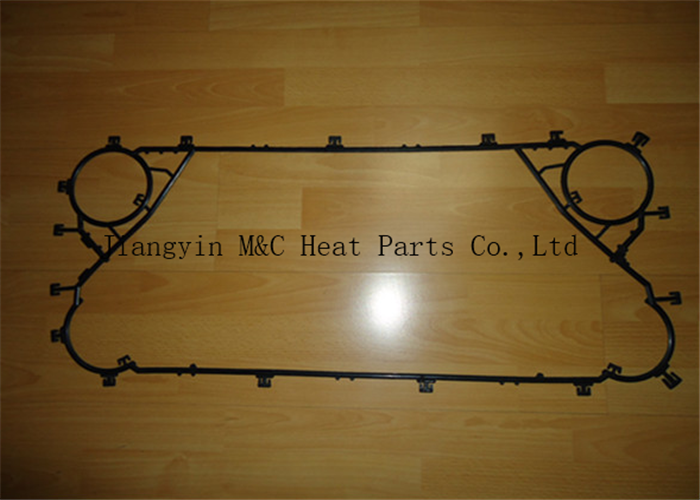

S21A Superior High Pressure Steam Plate Heat Exchanger Gasket


Our gaskets using advanced rubber formulations and renowned vendors, and then by a well-known professional engineer rubber ingredients, produced by the gasket without any pungent odor, consistent product standard. Using oil heating curing, ensuring a smooth temperature vulcanized rubber. After a curing gaskets and leading international technology secondary sulfide, ensuring better performance of the gasket.

Sealing material: NBR, HNBR, EPDM, FPM, VG
Sealing type: hang on, snap in, clip on, glue on.
Material of Gasket
Operating Temperature Range
Suited Liquid Kinds
NBR
-15~+135° C
Water, Sea Water, Mineral Oil, Salty Water
EPDM
-25~+180° C
Hot Water, Steam, Acid, Caustic
FPM
-55~+160° C
Acid, Caustic, Fluid
VG
0~+180° C
Concentrated Acid, Caustic, High-temperature Oil, Steam

Feature

A: Simple style and good sealing

B: Widely used and adaptable

C: Resistant to corrosion and high temperature

D: Easy to disassemble and maintain

Parameters

Gasket Material Temperature Range(℃) Hardness Available Fluid
NBR -20 to 110 -75+/-3 Water,Oil,Acid etc
EPDM -30 to 150 80+/-5 Steam,Ammonia,Acid etc
NBR-HT -30 to 160 85+/-5 Mineral Oil,Thermal Oil
EPDM-HT -30 to 180 85+/-5 High-Temperature Water
TFEP -20 to 180 80+/-5 Acid,Glycol,Chloride
FPM -55 to 220 80+/-5 Acid,Glycol,Chloride

S21A Steam Sondex Plate 0.21㎡ Heat Exchanger Gasket High Pressure

Application

Application:HAVC, Powerplant, Food, Marine, Refinery, Pharmace, Mining, Chemical, Refrigeration

Why choose us ?

1. We always think from the perspective of customers, solve problems and bring higher value to customers

2. More than 15 years of professional experience and expert team

3. Professional production r&d team to improve heat exchange efficiency and reduce operating costs

4. The technical scheme of guaranteed commitment

5. Whole process service from pre-sale to after-sale

6. Help customers reduce risks and save costs to maximize customer benefits

S21A Steam Sondex Plate 0.21㎡ Heat Exchanger Gasket High Pressure
